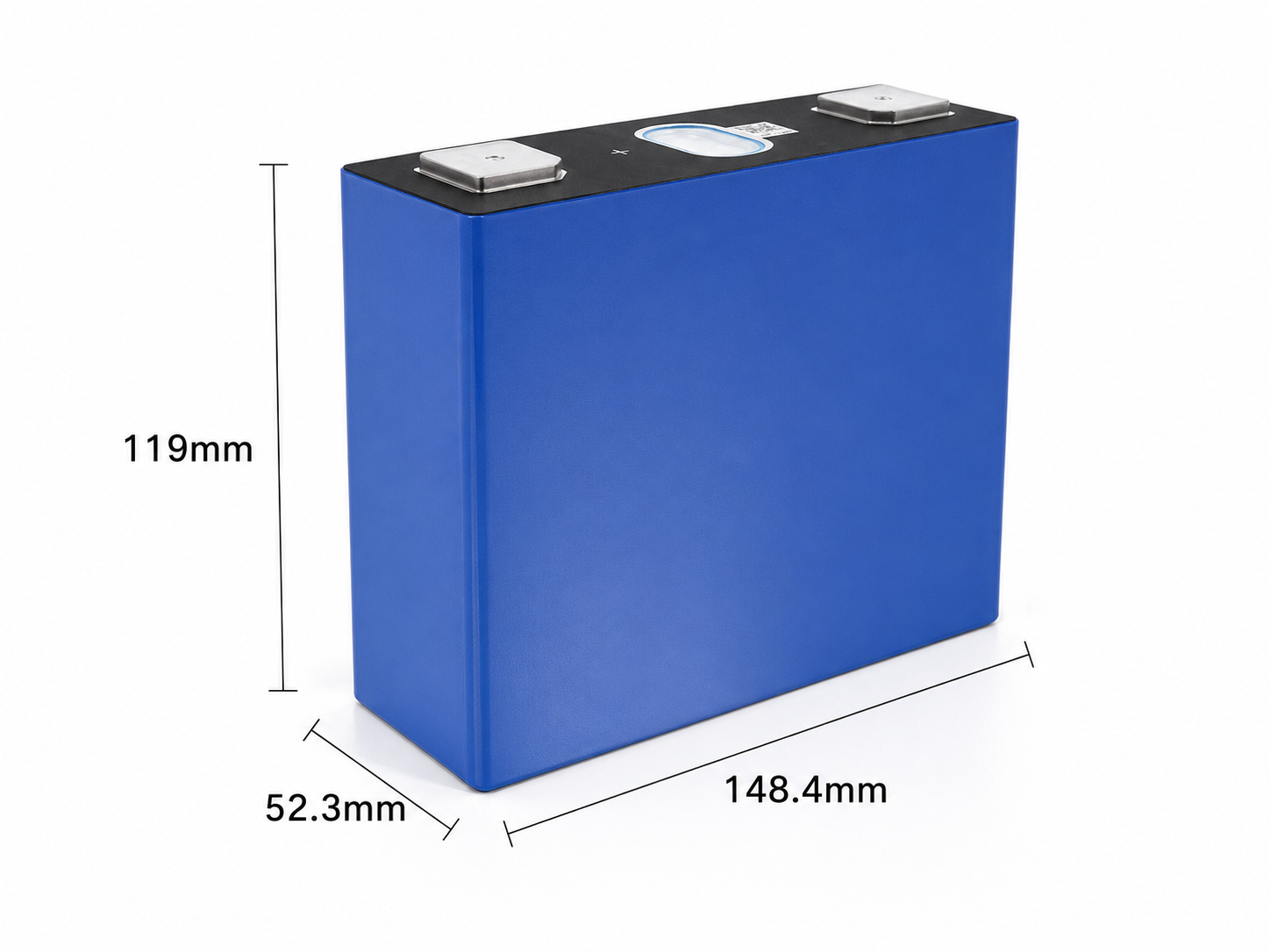

REPT CB56 3.2V 100Ah LiFePO4 Prismatic Cell
- Model
- CB56-100Ah
- Nominal Voltage
- 3.2V
- Nominal Capacity
- 100Ah
- Nominal Energy
- 320Wh
- Dimensions
- 52.32 ± 0.5 × 148.40 ± 0.6 × 119.0 ± 0.6 mm
- Weight
- 1.91 ± 0.15 kg
- Warranty
- Subject to the commercial contract
Key Features
- 100Ah LiFePO4 Capacity — Provides 320Wh nominal energy for professionally engineered energy-storage and motive battery packs.
- 100A Continuous Discharge — Supports up to 100A continuous discharge and 250A pulse discharge for 10 seconds under specified conditions.
- ≥6,000 Cycles — Delivers long cycle performance until the remaining capacity reaches 70Ah under specified test conditions.
- Compact Prismatic Design — Combines 100Ah capacity with a compact 52.32 × 148.40 × 119.0 mm cell format.
Technical Specifications
- Model
- CB56-100Ah
- Product Dimensions
- 52.32 ± 0.5 × 148.40 ± 0.6 × 119.0 ± 0.6 mm
- Product Weight
- 1.91 ± 0.15 kg
- Cell Configuration
- Single LiFePO4 Prismatic Cell (1S1P)
- BMS
- No integrated BMS; an external BMS and pack-level protection system are required.
- Nominal Voltage
- 3.2V
- Nominal Capacity
- 100Ah
- Nominal Energy
- 320Wh
- Maximum Charge Current
- 100A continuous; 150A peak for 10 seconds at 25 ± 2°C and 50% SOC
- Continuous Discharge Current
- 100A maximum continuous discharge at 25 ± 2°C
- Cycle Life
- ≥6,000 cycles to 70Ah remaining capacity under specified 0.5C charge/discharge and preload conditions
- Charging Temperature Range
- 0°C to 55°C
- Discharging Temperature Range
- -20°C to 55°C
- Cell Specifications
- 100Ah LiFePO4 Prismatic Cell
- Warranty
- Subject to the commercial contract
Product Overview
The REPT CB56 3.2V 100Ah LiFePO4 Prismatic Cell is designed for professionally engineered energy-storage and motive battery systems. It provides 320Wh nominal energy, supports up to 100A continuous charge and discharge current, and delivers a 250A pulse discharge for 10 seconds under specified conditions. With ≥6,000 cycles to 70Ah remaining capacity, compact dimensions and a low internal resistance of ≤0.40mΩ, the CB56 is suitable for manufacturers requiring a durable, high-capacity lithium iron phosphate cell for custom battery-pack production.
Product Application
The REPT CB56 100Ah LiFePO4 cell can be integrated into professionally designed battery packs for residential and commercial energy storage, solar battery systems, backup power supplies, industrial equipment, electric mobility and other OEM lithium battery applications. It is suitable for customers searching for a 3.2V 100Ah prismatic cell, 100Ah LiFePO4 battery cell or long-cycle energy-storage cell. Final suitability must be verified according to system voltage, current, thermal management, preload and safety requirements.
Product Selection Guide
Choose the CB56 when the battery-pack design requires a 3.2V 100Ah LiFePO4 cell, 320Wh nominal energy and up to 100A continuous charge or discharge current. Confirm the required series-parallel configuration, pack voltage, continuous and pulse current, operating temperature, enclosure dimensions, busbar design, preload force and external BMS before ordering. Cells assembled into one pack should be matched for capacity, voltage and internal resistance. Pack design and assembly must be completed by a qualified battery manufacturer.
Product FAQs
What applications can use the REPT CB56 100Ah LiFePO4 cell?
The CB56 can be evaluated for energy-storage systems, solar battery packs, backup power, industrial equipment and electric mobility battery packs. The final application must be verified by a qualified battery-system engineer.
What is the maximum discharge current of the CB56 100Ah cell?
The maximum continuous discharge current is 100A at 25 ± 2°C. The cell also supports a 250A pulse discharge for 10 seconds at 50% SOC under the specified test conditions.
How long is the cycle life of the REPT CB56 cell?
The specification lists ≥6,000 cycles until the remaining capacity reaches 70Ah. This result is based on specified 0.5C charging, 0.5C discharging, temperature and preload conditions.
Does the CB56 100Ah cell include a built-in BMS?
No. It is an individual prismatic cell and requires an external BMS, fuses, contactors, thermal monitoring and other pack-level protection designed for the final battery system.
