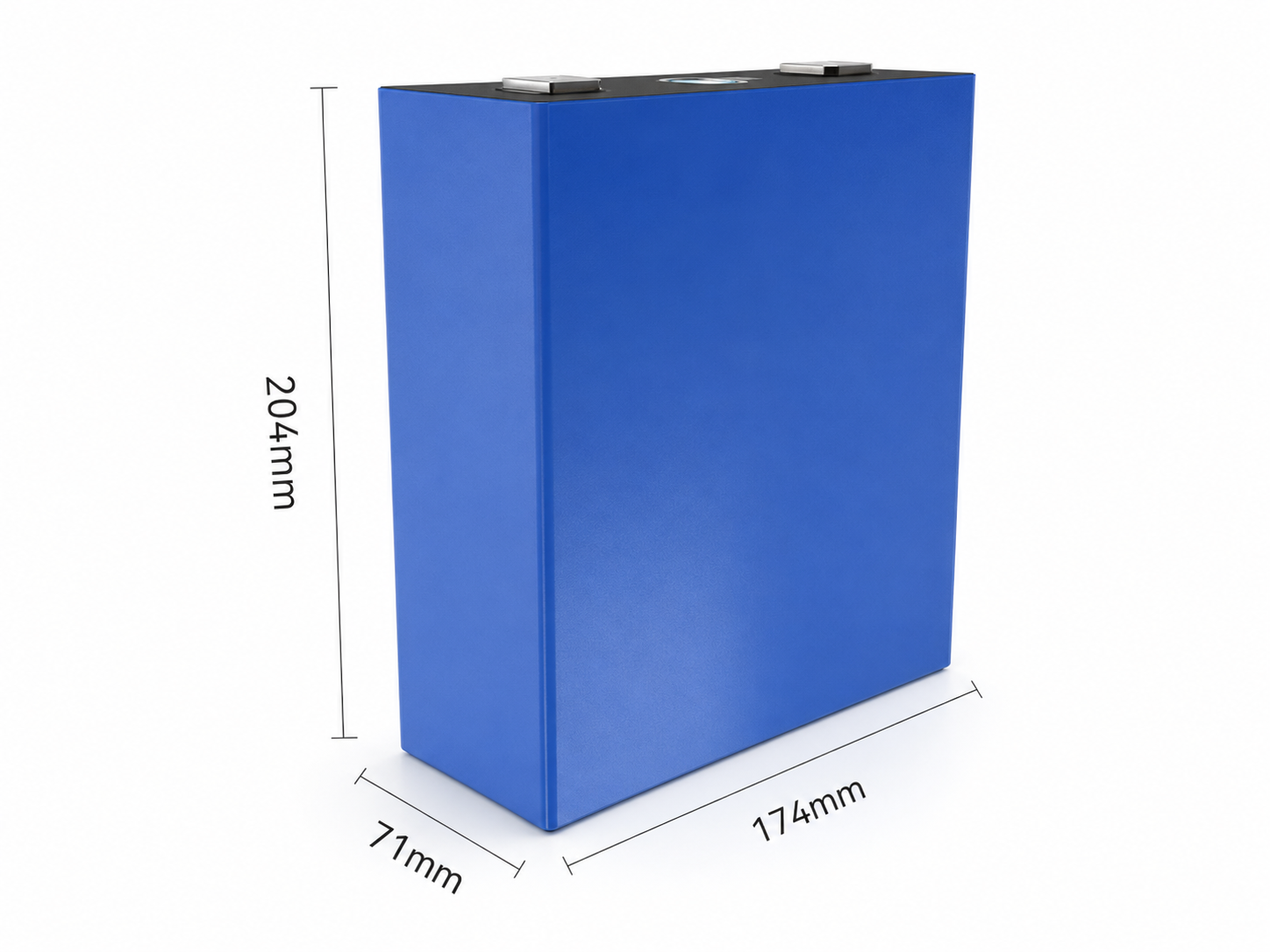

REPT CB75 3.2V 314Ah LiFePO4 Prismatic Cell
- Model
- CB75-314Ah
- Nominal Voltage
- 3.2V
- Nominal Capacity
- 314Ah
- Nominal Energy
- 1004.8Wh
- Dimensions
- 71.7 ± 0.8 × 174.0 ± 0.8 × 206.8 ± 0.8 mm
- Weight
- 5.78 ± 0.2 kg
- Warranty
- Subject to the commercial contract
Key Features
- 314Ah High Capacity — Provides 1004.8Wh nominal energy for large-scale LiFePO4 battery systems.
- ≥8,000 Cycles — Long-cycle design supports energy-storage applications requiring extended operational life.
- High Energy Efficiency — Delivers ≥94% energy efficiency under specified 0.5P test conditions.
- High Energy Density — Achieves approximately 174Wh/kg and 394Wh/L in a prismatic cell format.
Technical Specifications
- Model
- CB75-314Ah
- Product Dimensions
- 71.7 ± 0.8 × 174.0 ± 0.8 × 206.8 ± 0.8 mm
- Product Weight
- 5.78 ± 0.2 kg
- Cell Configuration
- Single LiFePO4 Prismatic Cell (1S1P)
- BMS
- No integrated BMS; an external BMS and pack-level protection system are required.
- Nominal Voltage
- 3.2V
- Nominal Capacity
- 314Ah
- Nominal Energy
- 1004.8Wh
- Maximum Charge Current
- Not specified in amperes; maximum continuous charging power is 502.4W (0.5P) at 25 ± 2°C
- Continuous Discharge Current
- Not specified in amperes; maximum continuous discharging power is 502.4W (0.5P)
- Cycle Life
- ≥8,000 cycles until capacity decreases to 70% of rated capacity under specified 0.5P charge/discharge and preload conditions
- Charging Temperature Range
- 0°C to 60°C
- Discharging Temperature Range
- -20°C to 60°C
- Cell Specifications
- 314Ah LiFePO4 Prismatic Cell
- Warranty
- Subject to the commercial contract
Product Overview
The REPT CB75 3.2V 314Ah LiFePO4 Prismatic Cell is a high-capacity battery cell designed for professionally engineered energy-storage systems. It provides 314Ah nominal capacity and 1004.8Wh nominal energy in a compact prismatic format. With ≥8,000 cycles to 70% remaining capacity, ≥94% energy efficiency and an internal resistance of 0.17 ± 0.05mΩ, the CB75 is suitable for OEM battery manufacturers requiring long cycle life, high energy density and dependable performance for large-scale storage projects.
Product Application
The REPT CB75 314Ah LiFePO4 cell is suitable for professionally designed commercial and industrial energy-storage systems, utility-scale battery storage, solar and wind energy storage, containerized BESS, UPS systems and other high-capacity OEM battery projects. It targets customers searching for a 3.2V 314Ah prismatic cell, 314Ah LiFePO4 battery cell or long-cycle battery cell for energy storage. Final system compatibility must be verified by a qualified battery-system integrator.
Product Selection Guide
Choose the CB75 when the project requires a 3.2V 314Ah LiFePO4 cell, approximately 1kWh nominal energy per cell and long cycle performance for stationary energy storage. Confirm the required series-parallel configuration, system voltage, power demand, charge and discharge limits, thermal management, busbar design, enclosure dimensions, preload force and external BMS. The specification requires pack designs to apply a cell preload force within the approved range, with appropriate tolerance and mechanical support.
Product FAQs
What applications are suitable for the REPT CB75 314Ah cell?
Choose the CB75 when the project requires a 3.2V 314Ah LiFePO4 cell, approximately 1kWh nominal energy per cell and long cycle performance for stationary energy storage. Confirm the required series-parallel configuration, system voltage, power demand, charge and discharge limits, thermal management, busbar design, enclosure dimensions, preload force and external BMS. The specification requires pack designs to apply a cell preload force within the approved range, with appropriate tolerance and mechanical support.
How much energy does one CB75 314Ah cell store?
One cell has a nominal voltage of 3.2V and a nominal capacity of 314Ah, providing 1004.8Wh of nominal energy under the specified test conditions.
What is the cycle life of the REPT CB75 314Ah cell?
The specification lists ≥8,000 cycles until capacity decreases to 70% of the rated capacity. This result requires the specified 0.5P charge and discharge process, temperature and preload conditions.
Does the CB75 cell require an external BMS and mechanical preload?
Yes. The individual cell does not include an integrated BMS. A complete battery pack requires an external BMS, electrical protection, thermal monitoring and properly engineered mechanical preload and support.
